500W 12V Solar RV Kits, 40A MPPT Charge Controller

500W 12V Solar RV Kits, 40A MPPT Charge Controller

SKU: 94a2d653
  • Easy installation: Comes with 12AWG cable with MC4 male/female quick connectors, and is fully compatible with the 4 Way Solar Tilt System.
  • Height Efficiency:5PC Polycrystalline solar cell efficiency: 14.35%; MPPT charge controller peak efficiency: 99.5%
  • MPPT Technology: Solar Charge Controller has user adjustable settings! LCD Screen shows, voltage, solar panel status, battery state of charge, and DC load draw. See Image in photo gallery for all LCD Screen readouts. Compatible with lead acid, AGM, gel, and lithium batteries
  • Green Solar System: : Designed for RVs, cabins, homes, boats, back-up and remote power use. The two solar panels can be wired in parallel for 12V battery charging or in series for 24V battery charging
  • Common Negative grounding design
  • Warranty25-year transferable power output warranty on panels and 1-year warranty on rest of the kit components
  • Multiple packagesOrder will be delivered in multiple packages


40A MPPT Charge Controller

  1. 12 / 24VDC automatically identifying system voltage
  2. Rated charge current: 40A
  3. Max Input Power: 520W/12V 1040W/24V
  4. Max.PV open circuit voltage:100VDC (92V at 25℃ temperature)
  5. Battery type selection: lead-acid (Gel, Sealed, Flooded) and Lithium
  6. Negative Grounding Design
  7. Installion Notes:First connect the battery;Then connect the load; Finally connect the solar panel.

Packing list

  • 5PC 100W Polycrystalline Solar Panel
  • 1PC 40A MPPT Charge Controller
  • 5 Sets Mounting Z Bracket
  • 1PC 30ft 12AWG PV Cable
  • 1PC 8FT 8AWG Tray Cable

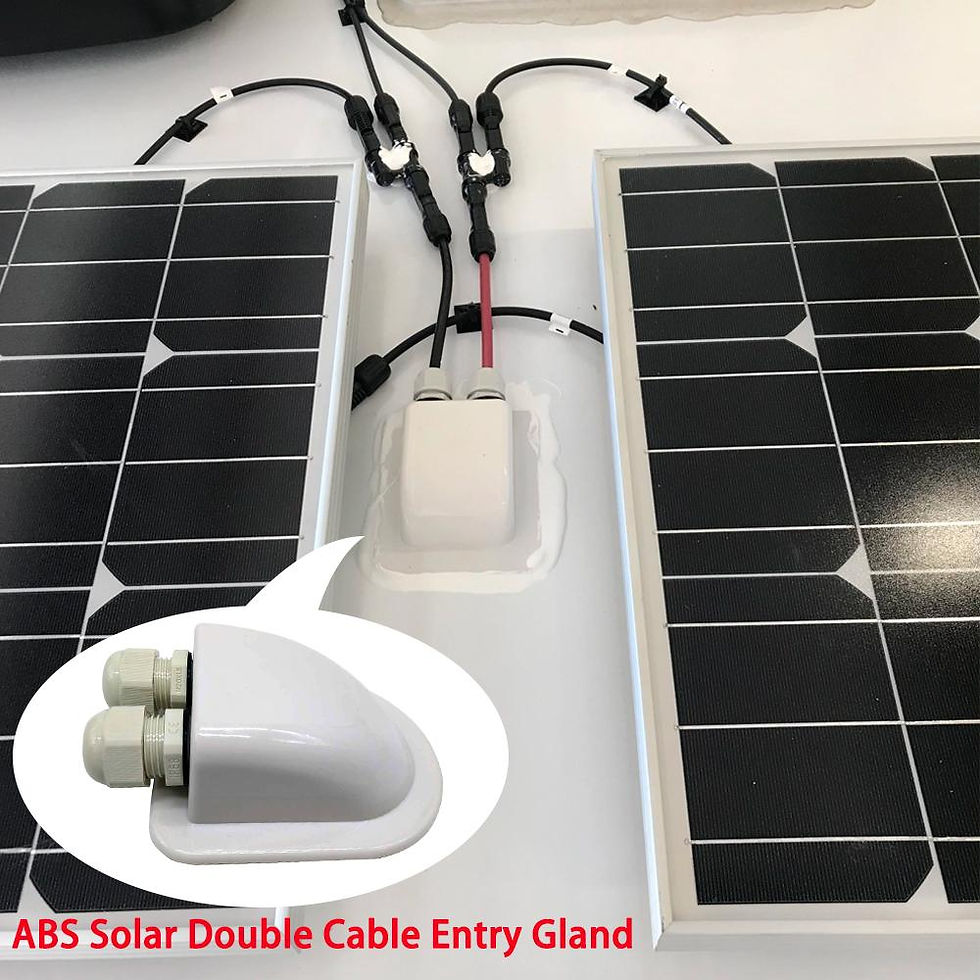

  • 1PC Cable Entry Housing
  • 1 Pair 1Y3 Branch Connector:1 male to 3 female(M/FFF) and 1 female to 3 male(F/MMM).
  • 1 Pair 1Y4 Branch Connector:1 male to 4 female(M/FFFF) and 1 female to 4 male(F/MMMM).
